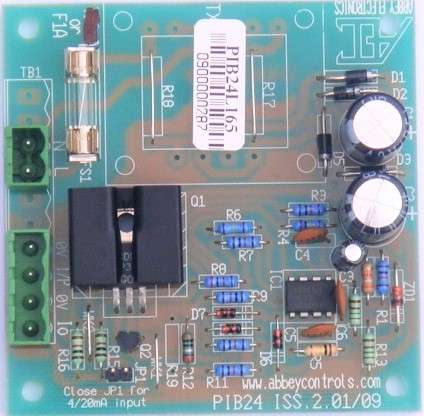

PIB24L165 DRIVER BOARD (TRANS-CONDUCTANCE AMPLIFIER)
| Quantity Discounts Off Price | ||||||
| 1-4 £49.02 |
5-9 £44.12 |
10-19 £41.67 |
20-49 £39.22 |
50-99 £37.99 |
100+ £36.77 |
|
£49.02 + VAT
The PIB24L165 is a scalable driver board which, for an input of 0 to 10V (or 0 to 20mA), generates a proportional output current of 0 to 165mA. By shorting out jumper JP1 (shorting header not supplied), the control will be changed from 10V operation to 20mA operation, i.e. an input of 0 – 20mA will cause the output to correspondingly change from 0 to 165mA.
| Weight | 0.2 kg |
|---|
